High Performance Ball Bearings NSK 608ZZ C3 Ball Bearing NSK 608ZZ Tube packing 608ZZCM NS7S ball bearing for skateboard
The Brief Description of NSK Bearings:
NSK deep groove ball bearings are versatile, self-retaining bearings with solid outer rings,inner
rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.
Stock List of NSK Bearing 608ZZ C3 600 series:
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
| Cr | Cor | r/min | r/min | ||||||
| 604ZZ | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605ZZ | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606ZZ | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607ZZ | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608ZZ | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |

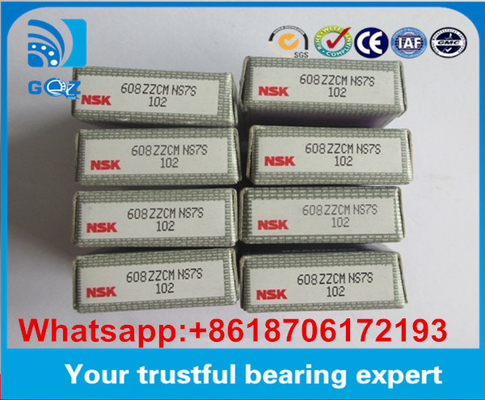

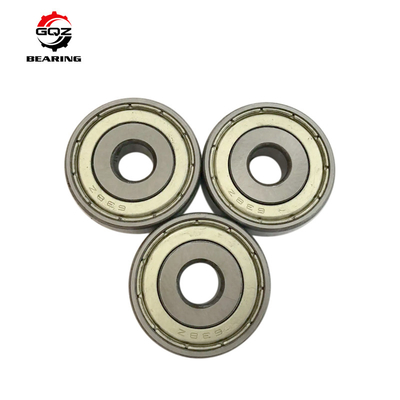

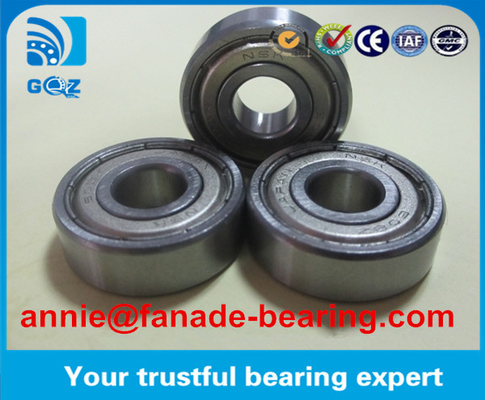

Pictures Shows of Japan NSK Bearing 608ZZ C3 Clearance :
Deep Groove Ball Bearing Details:
NSK Deep Groove Ball Bearing Instruction
Single-Row Deep Groove Ball Bearings
Pressed Steel Cages
Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
For big deep groove ball bearings, machined brass cages are used.
Machined cages are also used for high speed applications.
NSK Deep Groove Ball Bearing Features
NSK manufacture a full range of deep groove ball bearings. These bearings are the most common type and are used in a wide variety of applications.
Other Related NSK Deep Groove Ball bearing Catalog
| New Items | Old Items | Specifications(dxDxB) | Weight/kg |
| 6000 bearing | 100 | 10x26x8 | 0.019 |
| 6001 bearing | 101 | 12x28x8 | 0.021 |
| 6002 bearing | 102 | 15x32x9 | 0.03 |
| 6003 bearing | 103 | 17x35x10 | 0.036 |
| 6004 bearing | 104 | 20x42x12 | 0.068 |
| 6005 bearing | 105 | 25x47x12 | 0.078 |
| 6006 bearing | 106 | 30x55x13 | 0.09 |
| 6007 bearing | 107 | 35x62x14 | 0.16 |
| 6008 bearing | 108 | 40x68x15 | 0.203 |
| 6009 bearing | 109 | 45x75x16 | 0.24 |
| 6010 bearing | 110 | 50x80x16 | 0.25 |
| 6011 bearing | 111 | 55x90x18 | 0.362 |
| 6012 bearing | 112 | 60x95x18 | 0.426 |
| 6013 bearing | 113 | 65x100x18 | 0.428 |
| 6014 bearing | 114 | 70x110x20 | 0.62 |
| 6016 bearing | 116 | 80x125x22 | 0.86 |
| 6017 bearing | 117 | 85x130x22 | 0.935 |
| 6018 bearing | 118 | 90x140x24 | 1.16 |
| 6019 bearing | 119 | 95x145x24 | 1.14 |
| 6020 bearing | 120 | 100x150x24 |
1.17 |
