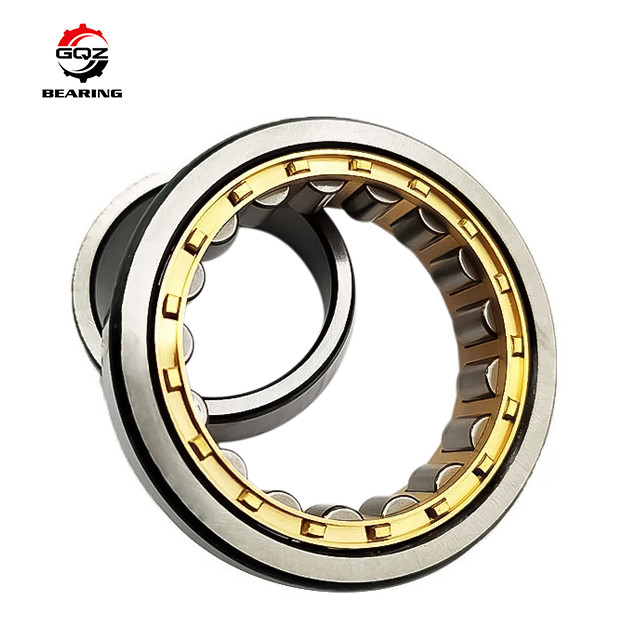

NU303E LOW NOSIE fag cylindrical roller bearing C0 C2 C3 C4 C5

NU303E LOW NOSIE fag cylindrical roller bearing C0 C2 C3 C4 C5

1. Cylindrical Roller Bearing  Specification :


2. Product Design  :

N design

Inside track with two unitary flanges, while outside track without flange. Axes's axial displacement to bearing block can be endured by bearing from two directions. Therefore, these bearings usually used as non position end bearings.

NU design

The outside track of NU design bearings has two unitary flanges, while inside track without flange. Axis's axial displacement to bearing block can be duded by bearing from two directions. Therefore, these bearings usually used as non position end bearings. Due to the reason of manufacture and maintenance, two flanges of outside track of NU design big bearings showed on drawing maybe not unitary, but with loose fit-up flange rings.

NJ design

Outside track has two unitary flanges, inside track also with one unitary flange. Therefore, these bearings suitable for the axial orientation of axes from one direction.

NUP design

Outside track have two unitary flanges, while inside track with one unitary flange and one non-unitary flange in form of loose fit-up flange rings. These bearings can be used as position end bearings, that is to say can offer the axial orientation of axes from two directions.


3. Main products :

1. Taper roller bearing

2. Deep groove ball bearing

3. cylindrical roller bearing

3. spherical roller bearing

4. linear bearing

5. pillow block bearing

6  OEM all knid of famous brand

7.  Non-standard bearing

4 .Shipping:

1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

5. APPLICATION:

Mainly used in large and medium-sized motor, locomotives, spindle, internal combustion
engines, generators, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc

6 . We have enough stock , following is our products in stock .

Beside,we also have some hot sale bearings,detail as follow:
