ABEC-5 Level 25 Degree Contact Angle 7001 AC/DT Angular Contact Ball Bearing
1. Specification:
|
Specification of Bearing |
|
|
Bearing type |
Angular contact ball bearing |
|
Brand type |
OEM |
|
Precision Rating |
ABEC-5 |
|
Place of origin |
China |
|
Vibration |
Z1V1,Z2V2,Z3V3 |
|
Durability |
Long |
|
Material |
Bearing steel |
|
Certificate |
ISO9001:2008 |
|
Main market abroad |
South America,USA,European,Southeast Asia,Middle East |
|
Packaging Details |
1. inner:polyester bag outer:paper carton 2. industrial standard packing 3. Poly bag+box+packing 4. 4. as your order |
|
Delivery Time |
Within 3-5 days after receiving your subscription |
|
Payment Terms |
T/T,Western Union,Paypal |
2. Feature:
(1) ABEC-5 precision or P5 precision
(2) chrome steel inner ring and outer ring
(3) Nylon cage
(4) DT Matching type
(5) Quick delivery
3. Anguar contact contact angle:
AC: 25 degree
B: 40 degree
C: 15 degree
A: 30 degress
4. Matching type:
DB: back to back
DF: face to face
DT: Series connect

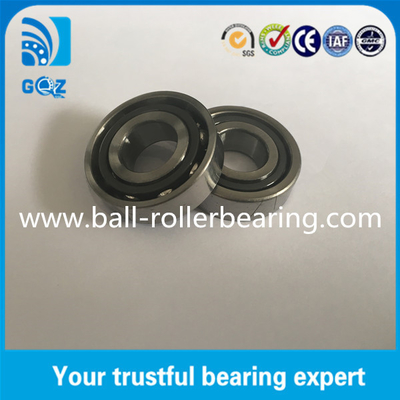

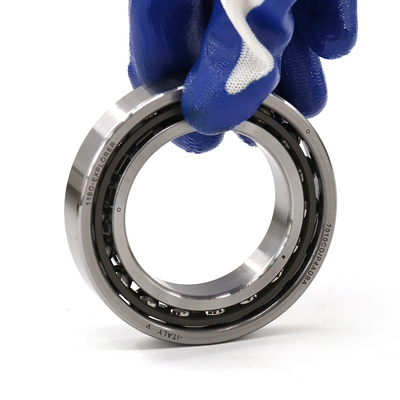

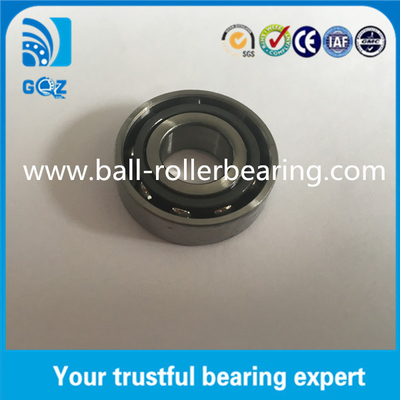

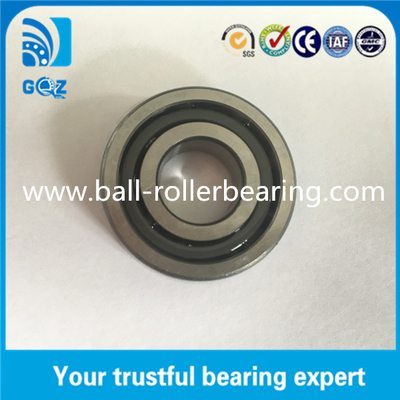

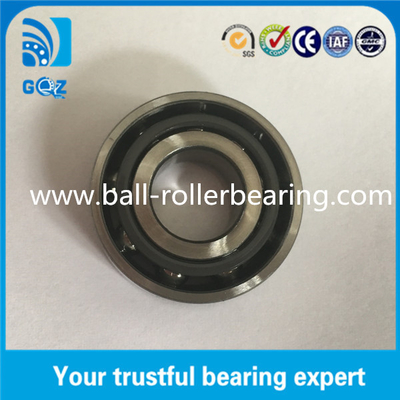

5. Bearing Picture:
6. We also supply following bearings:
|
Designation |
Dimensions (mm) |
mass |
||
|
|
d(mm) |
D(mm) |
B(mm) |
KG |
|
7221 BEP |
105 |
190 |
36 |
3.82 |
|
7321 BECAM |
105 |
225 |
49 |
9.12 |
|
7321 BECBM |
105 |
225 |
49 |
9.12 |
|
7321 BECBP |
105 |
225 |
49 |
8.46 |
|
7321 BEGAM |
105 |
225 |
49 |
9.12 |
|
7321 BEP |
105 |
225 |
49 |
8.46 |
|
7222 BECBM |
110 |
200 |
38 |
4.95 |
|
7222 BECBP |
110 |
200 |
38 |
4.6 |
|
7222 BECBY |
110 |
200 |
38 |
4.75 |
|
7222 BECCM |
110 |
200 |
38 |
4.95 |
|
7222 BEGAF |
110 |
200 |
38 |
4.95 |
|
7222 BEGBF |
110 |
200 |
38 |
4.95 |
|
7222 BEM |
110 |
200 |
38 |
4.95 |
|
7222 BEP |
110 |
200 |
38 |
4.6 |
|
7322 BECBM |
110 |
240 |
50 |
10.7 |
|
7322 BECBP |
110 |
240 |
50 |
9.69 |
|
7322 BECBY |
110 |
240 |
50 |
9.69 |
|
7322 BECCM |
110 |
240 |
50 |
10.7 |
|
7322 BEGAM |
110 |
240 |
50 |
10.7 |
|
7322 BEGBM |
110 |
240 |
50 |
10.7 |
|
7322 BEM |
110 |
240 |
50 |
10.7 |
|
7322 BEP |
110 |
240 |
50 |
9.69 |
|
7322 BEY |
110 |
240 |
50 |
9.69 |
|
7024 BGM |
120 |
180 |
28 |
2.4 |
|
7224 BCBM |
120 |
215 |
40 |
5.89 |
|
7224 BGAM |
120 |
215 |
40 |
5.89 |
|
7224 BM |
120 |
215 |
40 |
5.89 |
|
7324 BCBM |
120 |
260 |
55 |
13.8 |
|
7324 BGBM |
120 |
260 |
55 |
13.8 |
|
ALS 40 ABM |
127 |
228.6 |
34.925 |
6.1 |
|
7226 BCBM |
130 |
230 |
40 |
6.76 |
|
7226 BGAM |
130 |
230 |
40 |
6.76 |
|
7226 BM |
130 |
230 |
40 |
6.76 |
|
7326 BCBM |
130 |
280 |
58 |
17.1 |
|
7326 BM |
130 |
280 |
58 |
17.1 |
|
7028 BGM |
140 |
210 |
33 |
3.85 |
|
7228 BCBM |
140 |
250 |
42 |
8.83 |
|
7228 BM |
140 |
250 |
42 |
8.83 |
|
7328 BCBM |
140 |
300 |
62 |
21.3 |
|
7030 BGM |
150 |
225 |
35 |
4.7 |
|
7230 BCBM |
150 |
270 |
45 |
10.8 |
|
7230 BGAM |
150 |
270 |
45 |
10.8 |
|
7330 BCBM |
150 |
320 |
65 |
25 |
|
7232 BCBM |
160 |
290 |
48 |
13.6 |
|
7332 BCBM |
160 |
340 |
68 |
30.3 |
|
7234 BCBM |
170 |
310 |
52 |
16.7 |
|
7334 BCBM |
170 |
360 |
72 |
34.6 |
|
7036 BGM |
180 |
280 |
46 |
10 |
|
7236 BCAM |
180 |
320 |
52 |
17.6 |
|
7236 BCBM |
180 |
320 |
52 |
17.6 |
Company information:
FAQ
What is angular contact thrust bearing?
Angular contact thrust ball bearings are designed to to carry axial loads with small radial load carrying capacity. They comprise of a shaft washer, a housing washer, and a ball and cage assembly. These bearings have raceways on the face the washers and are separable.
What is the contact angle of a thrust ball bearing?
Angular contact ball thrust bearings are designed to accommodate both radial and thrust loads with their large thrust carrying capacity being the primary design feature. These bearings are inch series and typically have an angle of contact around 50 degrees.
What is the function of angular contact ball bearing?
Angular contact ball bearings are an important type of bearing used in a wide variety of applications. They are typically used in applications where there is a need for high precision and high load capacity. Also, these bearings are used in applications where there is a need for low friction and low noise.
