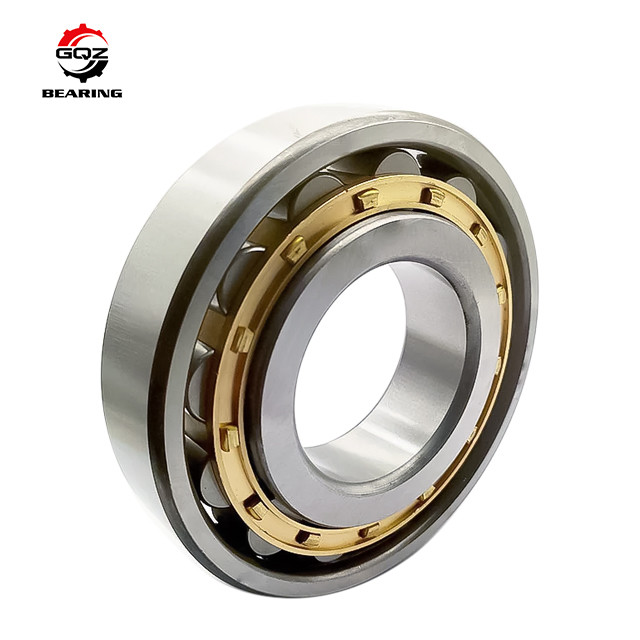

Custom Aluminum Cylindrical Wheel Roller Bearings N206ETN1 Fast Delivery
Part model:
Bearing No | Dimension(mm) | Mass |
| Bearing No | Dimension(mm) | Mass | ||||
| d | D | B | kg |
|
| d | D | B | kg |
NU2008M | 40 | 68 | 18 | 0.3 |
| NU2048M | 240 | 360 | 72 | 52 |
NU2009M | 45 | 75 | 19 | 0.4 |
| NU2052M | 260 | 400 | 82 | 40 |
NU2010M | 50 | 80 | 19 | 0.4 |
| NU2056M | 280 | 420 | 82 | 42 |
NU2011M | 55 | 90 | 22 | 0.6 |
| NU2060M | 300 | 460 | 95 | 61 |
NU2012M | 60 | 95 | 22 | 0.6 |
| NU2064M | 320 | 480 | 95 | 64 |
NU2013M | 65 | 100 | 22 | 0.7 |
| NU2068M | 340 | 520 | 106 | 86 |
NU2014M | 70 | 110 | 24 | 0.9 |
| NU2072M | 360 | 540 | 106 | 90 |
NU2015M | 75 | 115 | 24 | 0.9 |
| NU2076M | 380 | 560 | 106 | 96 |
NU2016M | 80 | 125 | 27 | 1.3 |
| NU2080M | 400 | 600 | 118 | 125 |
NU2017M | 85 | 130 | 27 | 1.2 |
| NU2084M | 420 | 620 | 118 | 130 |
NU2018M | 90 | 140 | 30 | 1.8 |
| NU2088M | 440 | 650 | 122 | 145 |
NU2019M | 95 | 145 | 30 | 1.8 |
| NU2092M | 460 | 680 | 128 | 168 |
NU2020M | 100 | 150 | 30 | 1.9 |
| NU2096M | 480 | 700 | 128 | 173 |
| |||||||||||||||||||||
Company information:
FAQ
What is a cylindrical roller bearing used for?
Cylindrical roller bearings can take some axial load in one direction when the inner or outer rings have two ribs. Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.
What is a cylindrical roller bearing?
Cylindrical Roller Bearings are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings. As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface.
