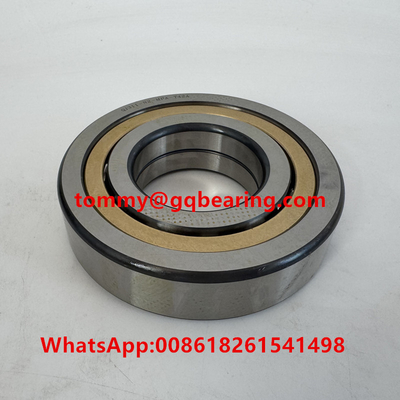

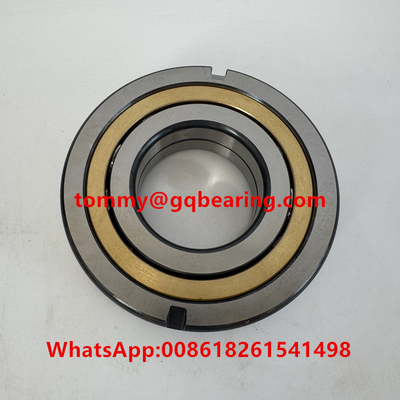

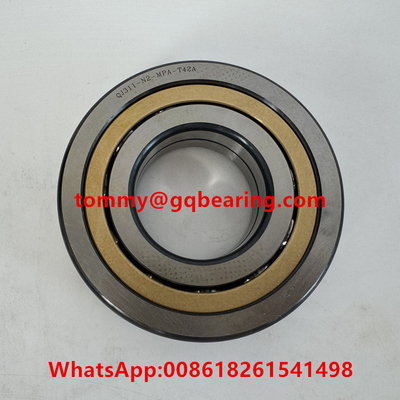

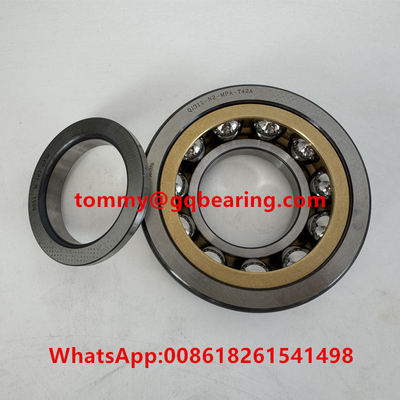

FAG QJ311 QJ311-N2-MPA-T42A Four-point Contact Ball Bearing Brass Cage 55x120x29mm
The Brief Description of four point contact ball bearing :
Four-point contact ball bearings are a type of separable bearings, or angular contact ball bearings that can withstand bidirectional axial loads. The inner and outer raceways are peach-shaped in cross-section. When there is no load or a pure radial load, the steel ball and the ring are in four-point contact.
Dimensional Drawing |
QJ311-N2-MPA-T42A |
d |
55 mm |
D |
120 mm |
C |
29 mm |
| Basic dynamic load rating, radial | 133000 N |
Basic static load rating,radial |
108000 N |
r |
0.0394 in1.000 mm |
r1 |
0.0236 in0.600 mm |
ds |
10-32 UNF |
G |
0.1772 in4.500 mm |
d4 |
1.1654 in29.600 mm |
S1 |
0.7205 in18.300 mm |
S |
0.5000 in12.700 mm |
a |
0.1220 in3.100 mm |
b |
0.0591 in1.500 mm |
D1 |
1.7559 in44.600 mm |
F |
0.1575 in4.000 mm |
