Hiwin MGN3 MGN3H MGN03H MGN03HZ0HM Miniature Linear Guide Linear Block
1. Specification:
|
Specification of Bearing |
|
|
Bearing type |
linear block |
|
Brand type |
HIWIN |
|
Precision Rating |
CHINA TAIWAN |
|
Vibration |
Z1V1,Z2V2,Z3V3 |
|
Durability |
Long |
|
Material |
chrome steel |
|
Certificate |
ISO9001:2008 |
|
Main market abroad |
South America,USA,European,Southeast Asia,Middle East |
|
Packaging Details |
1. inner: polyester bag outer:paper carton 2. industrial standard packing 3. Poly bag+box+packing 4. 4. as your order |
|
Delivery Time |
Within 3-5 days after receiving your subscription |
|
Payment Terms |
T/T,Western Union,Paypal |
2. MGN3H datasheet
| H | Total height | 4 | mm |
| H1 | 1 | mm | |
| N | 2,5 | mm | |
| W | Block width | 8 | mm |
| C | 5,5 | mm | |
| L1 | 11 | mm | |
| L | Block length | 15,3 | mm |
| M | M2 | ||
| l | 1,3 | mm | |
| Mass | 0,002 | kg |
3. Feature:
(1) Square type
(2) Heavy duty
(3) Chrome steel
(4) Quality guarantee
(5) Fast delivery
(6) Cheap price,high quality
4. Pre-load:
Z0 pre-load
ZA pre-load
5.Precision:
C:Normal
H:High
P:Precision

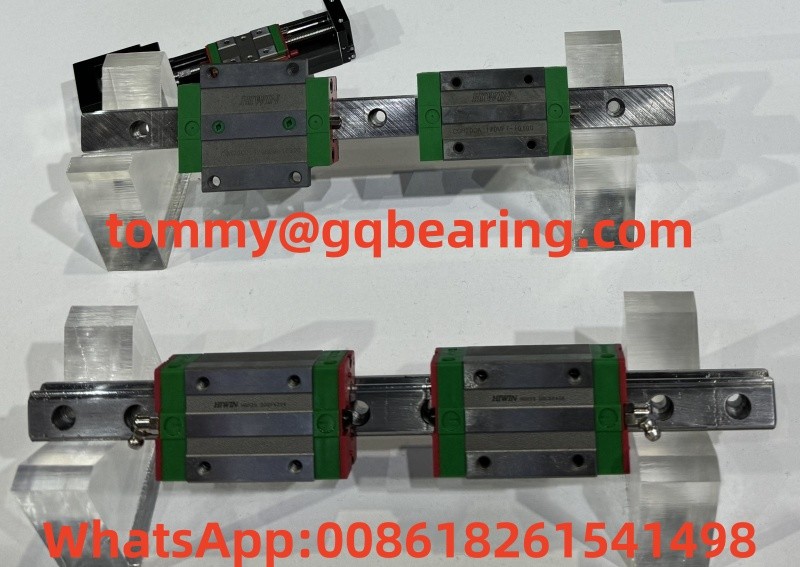

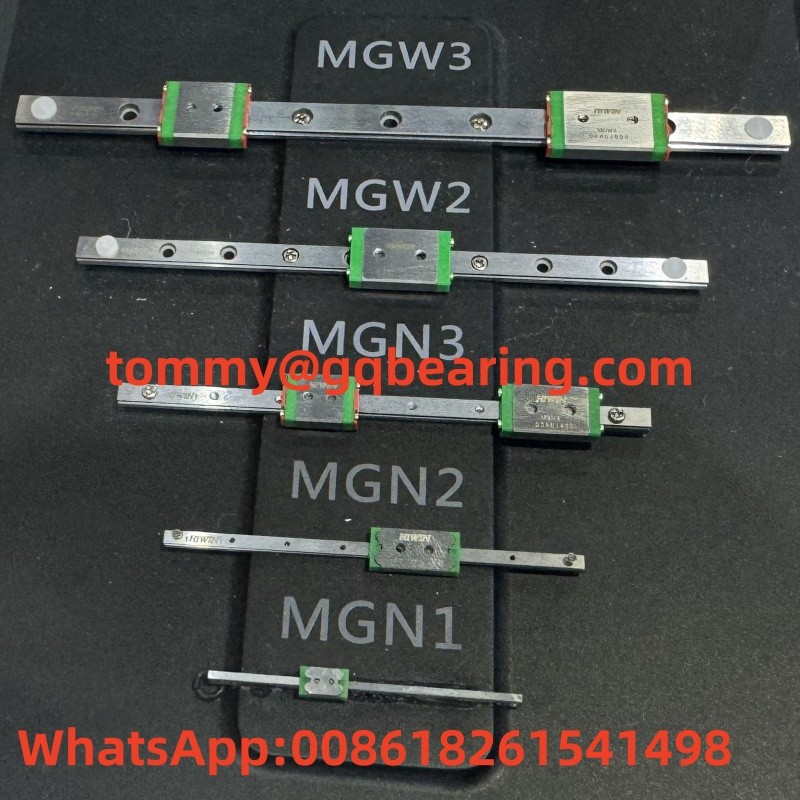

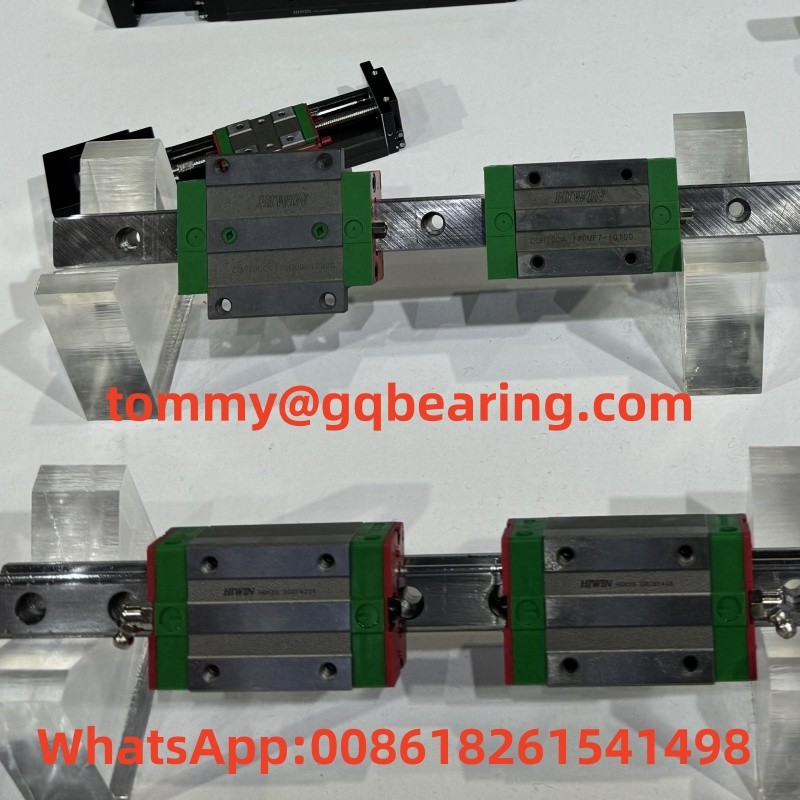

6. Bearing Picture:
Company information:
FAQ
What are the proper installation techniques for the HIWIN MGN3H linear block to ensure optimal performance?
Correct installation of the HIWIN MGN3H linear guideway is crucial for its optimal performance. Start by ensuring the mounting surface is clean and free of any debris that could damage the bearing. Use appropriate tools or presses to mount the bearing without applying excessive force directly onto the balls. Alignment is critical; make sure the bearing is centered and parallel to the shaft to avoid uneven loading. Following the manufacturer's guidelines for preload and adjustment will help achieve the best performance and longest service life.
What maintenance practices should be followed to extend the service life of the HIWIN MGN3H linear carriage?
Regular maintenance of the MGN03C linear guideway includes proper lubrication, cleaning, and inspection. Use high-quality lubricants that match the bearing's operating conditions to reduce friction and wear. Regularly check for signs of wear, such as noise, vibration, or temperature increase, which can indicate issues that need attention. Keeping the bearing clean and protected from contaminants is also essential to prevent premature failure. By adhering to a maintenance schedule, you can significantly extend the service life of the MGN03Hbearing.
How can I troubleshoot common issues with the HIWIN MGN3H Linear Bearing during operation?
Troubleshooting issues with the MGN3H linear block often involves monitoring for unusual symptoms such as increased noise, vibration, or overheating. Noise can indicate misalignment or wear, while vibration can point to unbalanced loads or bearing looseness. Overheating may suggest inadequate lubrication or excessive load. Using diagnostic tools such as vibration analyzers or thermometers can help pinpoint the exact cause. Regular inspections and listening to the bearing's sounds can also alert you to potential problems early, allowing for timely maintenance or replacement of the MGN3H bearing before a catastrophic failure occurs.
If you want to buy HIWIN MGN3H linear block,just contact us!
