NACHI 42BXW8022 Single Row Automotive Gearbox Bearing
1.Type:single row deep groove ball bearing
2.Specification:
| Bearing number | 42BXW8022 |
| ID | 42 mm |
| OD | 80 mm |
| Thickness | 22 mm |
| Weight | 0.8 kg |
3.Feature:
(1) Single row
(2) open
(3) Japan origin
(4) Competitive price
(5) Rich stock

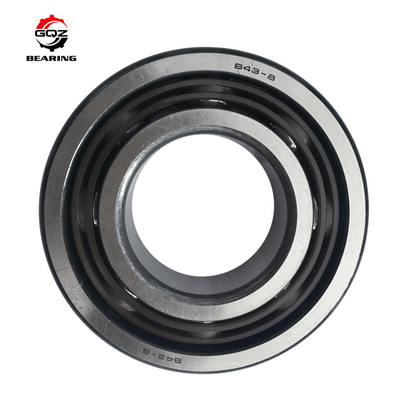

4.Bearing photos:
5. We also supply following angular contact ball bearing:
| Designation | Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Mass | ||||
| dynamic | static | Reference speed | Limiting speed | ||||||
| d | D | B | C | C0 | Pu | ||||
| - | mm | kN | kN | r/min | kg | ||||
| 7200BEP | 10 | 30 | 9 | 7,02 | 3,35 | 0,14 | 30000 | 30000 | 0,03 |
| 7200BECBP | 10 | 30 | 9 | 7,02 | 3,35 | 0,14 | 30000 | 30000 | 0,03 |
| 7201BEP | 12 | 32 | 10 | 7,61 | 3,8 | 0,16 | 26000 | 26000 | 0,036 |
| 7201BECBP | 12 | 32 | 10 | 7,61 | 3,8 | 0,16 | 26000 | 26000 | 0,036 |
| 7201BEGAP | 12 | 32 | 10 | 7,61 | 3,8 | 0,16 | 26000 | 26000 | 0,036 |
| 7301BEP | 12 | 37 | 12 | 10,6 | 5 | 0,208 | 24000 | 24000 | 0,063 |
| 7202BEP | 15 | 35 | 11 | 8,84 | 4,8 | 0,204 | 24000 | 24000 | 0,045 |
| 7202BECBP | 15 | 35 | 11 | 9,5 | 5,1 | 0,216 | 26000 | 26000 | 0,045 |
| 7202BEGAP | 15 | 35 | 11 | 9,5 | 5,1 | 0,216 | 26000 | 26000 | 0,045 |
| 7202BEGBP | 15 | 35 | 11 | 9,5 | 5,1 | 0,216 | 26000 | 26000 | 0,045 |
| 7302BEP | 15 | 42 | 13 | 13 | 6,7 | 0,28 | 20000 | 20000 | 0,081 |
| 7302BECBP | 15 | 42 | 13 | 13 | 6,7 | 0,28 | 20000 | 20000 | 0,081 |
| 7203BEP | 17 | 40 | 12 | 10,4 | 5,5 | 0,236 | 20000 | 20000 | 0,064 |
| 7203BEY | 17 | 40 | 12 | 11,1 | 6,1 | 0,26 | 20000 | 20000 | 0,064 |
| 7203BECBP | 17 | 40 | 12 | 11 | 5,85 | 0,25 | 22000 | 22000 | 0,064 |
| 7203BEGAP | 17 | 40 | 12 | 11 | 5,85 | 0,25 | 22000 | 22000 | 0,064 |
| 7203BECBM | 17 | 40 | 12 | 11 | 5,85 | 0,25 | 22000 | 22000 | 0,07 |
| 7303BEP | 17 | 47 | 14 | 15,9 | 8,3 | 0,355 | 19000 | 19000 | 0,11 |
| 7303BECBP | 17 | 47 | 14 | 15,9 | 8,3 | 0,355 | 19000 | 19000 | 0,11 |
| 7303BEGAP | 17 | 47 | 14 | 15,9 | 8,3 | 0,355 | 19000 | 19000 | 0,11 |
| 7204BEP | 20 | 47 | 14 | 13,3 | 7,65 | 0,325 | 18000 | 18000 | 0,11 |
| 7204BECBM | 20 | 47 | 14 | 13,3 | 7,65 | 0,325 | 18000 | 19000 | 0,11 |
| 7204BECBY | 20 | 47 | 14 | 14 | 8,3 | 0,355 | 18000 | 18000 | 0,11 |
| 7204BECBP | 20 | 47 | 14 | 14,3 | 8,15 | 0,345 | 19000 | 19000 | 0,11 |
| 7204BEGAP | 20 | 47 | 14 | 14,3 | 8,15 | 0,345 | 19000 | 19000 | 0,11 |
| 7204BEGBP | 20 | 47 | 14 | 14,3 | 8,15 | 0,345 | 19000 | 19000 | 0,11 |
| 7304BEP | 20 | 52 | 15 | 17,4 | 9,5 | 0,4 | 16000 | 16000 | 0,14 |
| 7304BEY | 20 | 52 | 15 | 19 | 10,4 | 0,44 | 16000 | 16000 | 0,15 |
| 7304BECBY | 20 | 52 | 15 | 19 | 10,4 | 0,44 | 16000 | 16000 | 0,15 |
| 7304BECBP | 20 | 52 | 15 | 19 | 10 | 0,425 | 18000 | 18000 | 0,14 |
| 7304BEGAP | 20 | 52 | 15 | 19 | 10 | 0,425 | 18000 | 18000 | 0,14 |
| 7304BEGBP | 20 | 52 | 15 | 19 | 10 | 0,425 | 18000 | 18000 | 0,14 |
| 7304BECBPH | 20 | 52 | 15 | 19 | 10 | 0,425 | 18000 | 18000 | 0,14 |
| 7304BECBM | 20 | 52 | 15 | 19 | 10 | 0,425 | 18000 | 18000 | 0,15 |
| 7205BEP | 25 | 52 | 15 | 14,8 | 9,3 | 0,4 | 15000 | 15000 | 0,13 |
| 7205BEY | 25 | 52 | 15 | 15,6 | 10,2 | 0,43 | 15000 | 15000 | 0,13 |
| 7205BECBY | 25 | 52 | 15 | 15,6 | 10,2 | 0,43 | 15000 | 15000 | 0,13 |
| 7205BEGAY | 25 | 52 | 15 | 15,6 | 10,2 | 0,43 | 15000 | 15000 | 0,13 |
If you want to buy NACHI 42BXW8022 bearing,just contact us!Or send email directly to: tommy@gqbearing.com
Company information:
FAQ
How are Automobile Gearbox Bearings installed?
Installation of Automobile Gearbox Bearings requires:
•Proper tools and techniques to avoid damaging the bearings during installation
•Precise alignment with the shafts and gears to ensure smooth operation
•Correct preloading, if applicable, to maintain the right amount of tension
•Lubrication to minimize friction and wear during operation
What are the benefits of using high-quality Automobile Gearbox Bearings?
Using high-quality Automobile Gearbox Bearings offers several benefits:
•Enhanced durability and longer service life, reducing the need for frequent replacements
•Improved efficiency and reduced energy consumption, contributing to better fuel economy
•Quieter operation, which enhances the driving experience and reduces noise pollution
•Better tolerance to environmental factors and operational stresses, ensuring reliable performance
