LM20UU Stainless Steel Material Linear Ball Bearing Rubber Sealed Linear Bushing
1.Type:inear ball bearing
2.Material:Gcr15,stainless steel or nickelge
3.Specification:
| Part number | LM20UU |
| ID | 20 mm |
| OD | 32 mm |
| Thickness | 42 mm |
4.Feature:
(1)Good quality
(2)Competitive price
(3)Quick delivery
(4)Quality guarantee
5.Application:CNC machine and so on

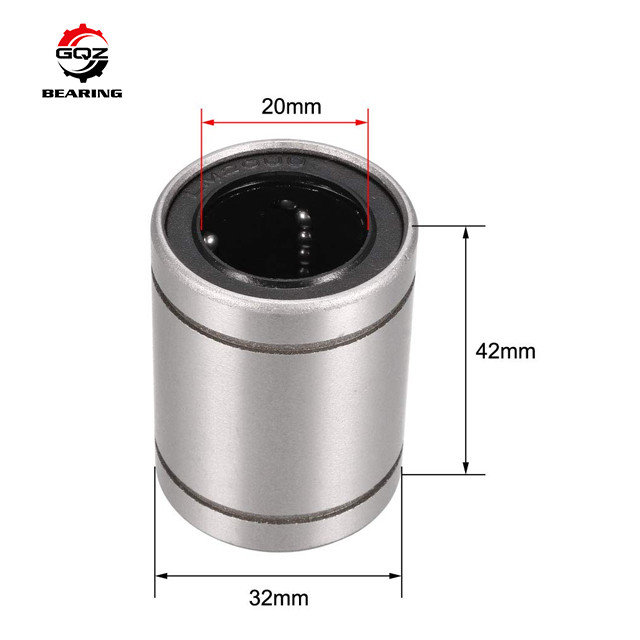

6.Bearing photo:
7.We also supply following kinds of linear ball bearing:
(1)Round type flange:LMF...UU
(2)Oval type flange:LMH...UU
(3) Square type flange:LMK...UU
| Model | ID : | OD : | T(B) : |
| LM20AJ | 20mm | 32mm | 30.5mm |
| LM20L | 20mm | 32mm | 61mm |
| LM20LUU | 20mm | 32mm | 61mm |
| LM20OP | 20mm | 32mm | 30.5mm |
| LM20UU | 20mm | 32mm | 42mm |
| LM20UUAJ | 20mm | 32mm | 30.5mm |
| LM20UUOP | 20mm | 32mm | 30.5mm |
| LM25 | 25mm | 40mm | 41mm |
| LM25AJ | 25mm | 40mm | 41mm |
| LM25L | 25mm | 40mm | 82mm |
| LM25LUU | 25mm | 40mm | 82mm |
| LM25OP | 25mm | 40mm | 41mm |
| LM25UU | 25mm | 40mm | 41mm |
| LM25UUAJ | 25mm | 40mm | 41mm |
| LM25UUOP | 25mm | 40mm | 41mm |
| LM30 | 30mm | 45mm | 44.5mm |
| LM30AJ | 30mm | 45mm | 64mm |
| LM30L | 30mm | 45mm | 89mm |
| LM30LUU | 30mm | 45mm | 89mm |
| LM30OP | 30mm | 45mm | 64mm |
| LM30UU | 30mm | 45mm | 64mm |
| LM30UUAJ | 30mm | 45mm | 44.5mm |
| LM30UUOP | 30mm | 45mm | 44.5mm |
| LM35 | 35mm | 52mm | 49.5mm |
| LM35AJ | 35mm | 52mm | 70mm |
| LM35L | 35mm | 52mm | 99mm |
| LM35LUU | 35mm | 52mm | 99mm |
| LM35OP | 35mm | 52mm | 70mm |
| LM35UU | 35mm | 52mm | 70mm |
| LM35UUAJ | 35mm | 52mm | 49.5mm |
| LM35UUOP | 35mm | 52mm | 49.5mm |
| LM40 | 40mm | 60mm | 60.5mm |
| LM40AJ | 40mm | 60mm | 60.5mm |
| LM40L | 40mm | 60mm | 121mm |
| LM40LUU | 40mm | 60mm | 121mm |
| LM40OP | 40mm | 60mm | 60.5mm |
| LM40UU | 40mm | 60mm | 60.5mm |
| LM40UUAJ | 40mm | 60mm | 60.5mm |
| LM40UUOP | 40mm | 60mm | 60.5mm |
| LM5 | 5mm | 10mm | 10.2mm |
| LM50 | 50mm | 80mm | 74mm |
| LM50AJ | 50mm | 80mm | 100mm |
| LM50L | 50mm | 80mm | 148mm |
If you want to buy this bearing,just feel free to contact us.
Company information
FAQ
Q: How are Linear Bearings installed?
A: Installing Linear Bearings requires:
•Specialized Tools: Use tools like bearing presses or pullers to facilitate safe installation.
•Correct Alignment: Ensure the bearings are aligned correctly with the guide rail to prevent misalignment and ensure smooth motion.
•Proper Preloading: Apply the right amount of preload, if necessary, to maintain optimal performance and reduce play.
•Lubrication: Apply the recommended lubricant before and after installation to ensure smooth operation.
Q: What are the benefits of using high-quality Linear Bearings?
A: High-quality Linear Bearings offer several benefits:
•Increased Durability: Longer lifespan and reduced need for frequent replacements.
•Improved Precision: Smoother and more accurate linear motion, enhancing the performance of the equipment.
•Reduced Noise and Vibration: Quieter operation and a more stable system.
•Enhanced Reliability: Consistent performance and reduced risk of unexpected failures.
Q: Can Linear Bearings be customized for specific applications?
A: Yes, Linear Bearings can be customized to meet specific requirements. Customizations might include:
•Material Selection: Choosing materials that offer better performance under specific conditions, such as high temperature or corrosive environments.
•Design Modifications: Adjusting the size, shape, or design to optimize for particular loads or environments.
•Surface Treatments: Applying coatings that enhance wear resistance or provide additional protection against environmental factors.By addressing these concerns and providing practical solutions, users can ensure the optimal performance and longevity of their Linear Bearings, contributing to the overall reliability and efficiency of their linear motion systems.
